mbeat USB-C Triple 4K Display Docking Station

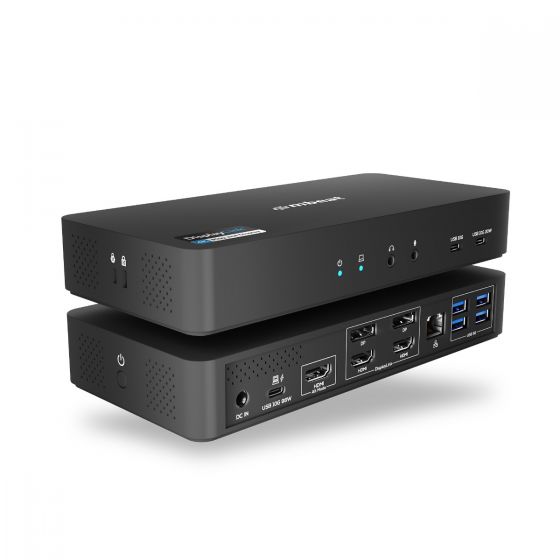

mbeat MB-DOCK-HDL18 USB-C Triple 4K Display DisplayLink Docking Station - front and rear port view showing HDMI Alt Mode, DisplayLink HDMI and DP outputs, USB-C 10Gbps and USB-A 5Gbps ports
$429.00
Click here to view wholesale price

Description:

The mbeat USB-C Triple 4K Display Docking Station is built for professionals who demand more from their laptops. Combining one native USB-C DP-Alt HDMI output with two DisplayLink® DP/HDMI outputs, it enables triple 4K/60Hz external displays on macOS and Windows devices. Whether you’re a video editor, financial analyst, coder, or multitasking power user, this dock transforms a laptop into a desktop-class workstation, expanding productivity and workflow efficiency across multiple screens.

  • • DisplayLink® Certified triple 4K/60Hz for Mac M1/M2/M3 and Windows
  • • Triple 4K display via HDMI Alt Mode and dual DisplayLink® outputs
  • • 96W PD passthrough with integrated 135W power supply
  • • 10Gbps USB-C, USB-A hub, Gigabit LAN and 3.5 mm audio
  • • K-Lock slot and power button for professional use

Triple 4K/60Hz External Displays
Expand your workspace across three 4K monitors at 60Hz. One HDMI port uses native DP-Alt, while the other two use DisplayLink® 4K technology, allowing seamless multitasking and a fully extended desktop environment.

DisplayLink® Extended Desktop
Overcome the Mac M1/M2/M3 mirroring limitation with DisplayLink®. A one-time driver installation enables true extended desktops on both Mac and Windows, providing plug-and-play multi-monitor functionality for professional workflows.

High-Speed USB Expansion
Stay connected with 2 × USB-C 10Gbps ports (one with 20W PD charging) and 4 × USB-A 5Gbps ports, keeping external drives, accessories, and peripherals running at full speed while reducing desk clutter.

All-in-One Power Convenience
The 135W power supply powers the dock, delivers up to 96W PD passthrough to your laptop, and 20W charging to phones or tablets. One integrated adapter powers all your devices, creating a clean, efficient workspace without additional chargers.

Professional Design & Real-World Benefits
Featuring a K-Lock slot, power button, Gigabit Ethernet, and audio jack, this dock is tailored for creatives and professionals. Ideal for multitasking, coding, editing, trading, and presentations, it delivers a stable, high-performance workstation in a single, compact solution.

Specifications:

Input:
• Host Port: 1 × USB-C 10Gbps upstream with PD passthrough (up to 96W)

Output:
• Video Outputs:
– 1 × HDMI 2.0 (USB-C DP-Alt)
– 2 × DP 1.2 /HDMI 2.0 (DisplayLink®)
• Maximum Resolution: Triple 4K@60Hz
• USB Ports:
– 2 × USB-C 10Gbps (1 with 20W PD charging)
– 4 × USB-A 5Gbps
• Networking: 1 × RJ45 Gigabit Ethernet
• Audio: 3.5 mm headphone jack & microphone jack
• Security & Control: K-Lock slot, power on/off button
• Power: 135W power adapter included
Note: Supplies power to the dock, peripherals, and laptop charging through PD passthrough (up to 96W ±5%). If your laptop requires more than 100W (e.g., 140W high-performance laptops), the dock still delivers up to 96W, which may result in slightly slower charging performance under peak load.

Product and Package:
• Product Dimensions: 202.85mm × 95mm × 32.6 mm
• Product Weight: 0.37kg
• Cable Included: 1m
• Package Dimensions: 255mm × 130mm × 89.5 mm
• Package Weight: 1.13kg
• Package Contents: USB-C Triple 4K Docking Station, USB-C to C Cable, 135W Power Adapter, Instruction Manual, Product Registration Card

Compatible OS:
• Windows: 7 / 8.1 / 10 / 11
• Mac: macOS 10.14 Mojave / 10.15 Catalina / 11 Big Sur / 12 Monterey / 13 Ventura / 14 Sonoma (M1/M2/M3 supported)
• Linux: Ubuntu 20.04+ / Fedora 34+ / Debian 11+
• Chrome OS: R55+ / Chromebooks since Jan 2015 (Exynos & Tegra models excluded)
• Android: 5.0 Lollipop+

Compatibility and Limitation:
• Works with USB-C laptops that support DP-Alt mode, including MacBook Pro / Air (M1, M2, M3 series); Dell® XPS series; ThinkPad X / T series; HP® EliteBook & Spectre series; Microsoft® Surface devices with USB-C; Other major USB-C laptops supporting DisplayPort Alt Mode.
• A DisplayLink® driver must be installed on your laptop or PC before the dock can function. Once installed, the dock works as plug and display. Drivers are available at https://www.synaptics.com/products/displaylink-graphics/downloads or via the user manual. Be sure to download the correct version for your operating system.
• Your laptop must support USB-C DP-Alt mode to enable triple-display functionality, this dock reduces desk clutter, simplifies your setup, and boosts overall productivity, making it a versatile hub for nearly any workspace.

Downloads

MB-DOCK-HDL18 Manual MB-DOCK-HDL18 Datasheet

DisplayLink® Drivers — Download for Your OS

A DisplayLink® driver must be installed before first use. Select your operating system below.

Windows macOS Chrome OS Linux Ubuntu Android

Frequently Asked Questions — MB-DOCK-HDL18

Q1: Can I run three external 4K monitors simultaneously on a Mac with Apple Silicon (M1, M2, M3)?

Yes. The MB-DOCK-HDL18 combines one native USB-C DP-Alt HDMI output with two DisplayLink® 4K outputs (via DP 1.2 / HDMI 2.0), enabling triple 4K@60Hz extended desktops on Apple Silicon Macs — which are otherwise natively limited to a single external display. This makes it ideal for video editing, coding, financial analysis, and any workflow that demands maximum screen real estate.

⚠️ Driver Installation Required: A DisplayLink® driver must be installed before the dock's DisplayLink® outputs will function. Download the correct version for your OS from synaptics.com/products/displaylink-graphics/downloads or via the link in the user manual. Once installed, the dock operates as plug and display.

Q2: What video outputs does the MB-DOCK-HDL18 provide, and how are they configured?

The dock features five video output ports in total — three HDMI and two DisplayPort — supporting a maximum of three simultaneous 4K@60Hz displays. The outputs use two different technologies as follows:

Port Technology Max Resolution Notes
1 × HDMI 2.0 USB-C DP-Alt (native) 4K@60Hz No driver required
2 × DP 1.2 / HDMI 2.0 DisplayLink® 4K@60Hz each Driver installation required

Note: Your laptop must support USB-C DP-Alt mode to enable triple-display functionality.

Q3: Will this dock charge my laptop? What are the power specifications?

Yes. The MB-DOCK-HDL18 includes an integrated 135W power supply that powers the dock itself and simultaneously delivers:

  • Up to 96W PD passthrough to your laptop via the upstream USB-C host port
  • 20W fast charging to a phone or tablet via the downstream USB-C charging port

⚠️ High-Power Laptop Note: If your laptop requires more than 100W (e.g. 140W high-performance models), the dock will still deliver up to 96W (±5%), which may result in slightly slower charging under peak load. The 135W power adapter is included in the box — no separate charger needed.

Q4: What USB ports and connectivity does the dock offer?

The MB-DOCK-HDL18 is a full-featured workstation hub with the following connectivity:

Port / Feature Specification
USB-C (data + charging) 2 × USB-C 10Gbps (1 with 20W PD charging)
USB-A (data) 4 × USB-A 5Gbps (USB 3.0)
Networking 1 × RJ45 Gigabit Ethernet
Audio 3.5mm headphone jack & microphone jack
Security K-Lock slot
Power control Power ON/OFF button

Q5: Which operating systems and laptops are compatible with the MB-DOCK-HDL18?

The dock supports a wide range of operating systems and USB-C laptops that support DP-Alt mode:

Operating System Supported Versions
Windows 7 / 8.1 / 10 / 11
macOS 10.14 Mojave and above, including M1 / M2 / M3
Linux Ubuntu 20.04+ / Fedora 34+ / Debian 11+
Chrome OS R55+ / Chromebooks since Jan 2015 (Exynos & Tegra excluded)
Android 5.0 Lollipop and above

Compatible laptops include MacBook Pro / Air (M1, M2, M3), Dell® XPS series, Lenovo ThinkPad X / T series, HP® EliteBook & Spectre series, and Microsoft® Surface devices with USB-C.

⚠️ Requirement: Your laptop must support USB-C DP-Alt mode for full triple-display functionality. A DisplayLink® driver is also required — download from synaptics.com/products/displaylink-graphics/downloads or via the included user manual.
